SKU# 145000

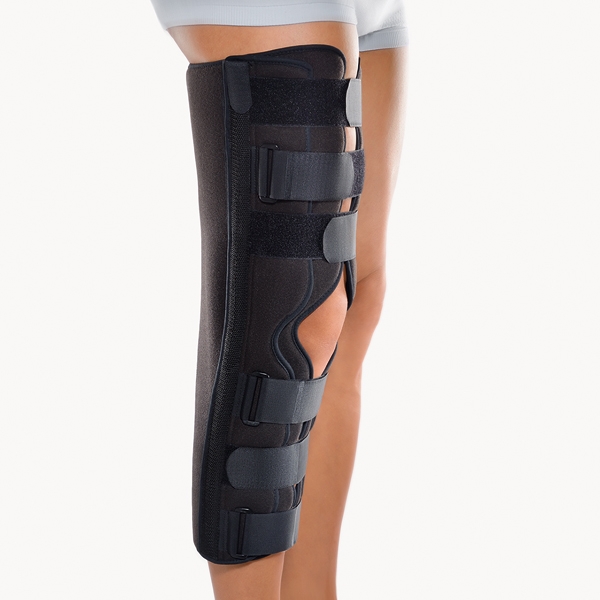

BORT Three Panel Knee Immobilization Splint with Patella Recess, Knee Stabilizer, Knee Brace
Product specifications
– Knee brace for immobilisation of the knee joint with a 0°-20° flexion
– Leg Immobilizer
– 3-piece with open patella
– Median and lateral aluminium splints, which can be freely positioned
– 4 Velcro fasteners
COLOR: black
The MED-Plus concept
– The support adapts to body shape thanks to 3-piece design
– Lined with terry cloth on the inside for excellent comfort
– The aluminum splints can be removed for washing.
A Knee Immobilizer is a brace that does exactly what its name implies: it immobilizes the knee joint and prevents it from moving.
An immobilizer brace is a long cloth brace that extends the length of the shin and thigh. There are metal support struts on the inside and outside part of the brace. Velcro straps hold the knee immobilizer in place. If you suffer a fracture of the patella or upper shin bone, a knee immobilizer may be used to help keep things in place during healing. The benefit of an immobilizer as compared to a plaster cast is that it can be removed to allow gentle motion to occur during healing. A knee immobilizer may also be used after ligament or tendon injury or surgery around the knee. It can help keep the knee straight to allow proper healing to occur, but it can also be removed for gentle motion to occur. Be sure to speak with your doctor or physical therapist to be certain that it is safe before removing your knee immobilizer. Source – Safran, M., Stone, D., Zachazewski, J. (2003). Instructions for sports medicine patients. Philadelphia: Saunders
EN= English Version
Splint – length — Height
38 cm— 80-145cm
45 cm — 145–155 cm
50 cm — 155–165 cm
55 cm — 165–180 cm
60 cm — over 180 cm
Can be worn on the left or right
BORT Immobilization splint with patella recess
Many thanks for placing your trust in a medical device from BORT GmbH.
Please read the existing instructions for use carefully. If you have any
questions, please refer to your physician or the specialist retailer from whom
you purchased this medical device.
Intended purpose
This medical device is a brace for immobilization of the knee joint in a defined
position (bent / stretched).
Indications
Pre-operative, post-operative, post-traumatic, joint, muscle or ligament
injuries
Contraindications
Peripheral arterial occlusive disease (PAOD), lymph drainage disorders,
also unclear soft tissue swellings distal to the aid positioned, sensory and
circulatory disorders with the region of the body treated, skin diseases in the
part of the body treated.
Application risks / Important notes
This medical device is a prescribable product. Discuss the use and duration
with your treating physician. The expert staff from whom you have received
the medical device will select the appropriate size and instruct you regarding
its use.
–remove the medical device prior to radiological examinations
–in case of numbness or pressure sores, loosen the medical device and
remove it if necessary.
–in case of persistent complaints, consult the physician or specialist retailer
–use the medical device in accordance with therapeutic needs
–only use other products simultaneously after consultation with your
physician
–do not make any changes to the product
–do not wear it on open wounds
–do not use in case of intolerance of one of the materials used
–no re-use. This medical aid is intended for treating one patient only
Fitting instructions
The BORT Immobilization Splint with patella recess consists of 3 parts: A large
middle part and 2 side parts attached with Velcro.
Before attaching the brace, the integrated aluminum splints which are in the
splint bags for the middle and side parts, must be formed to fit the patient’s
existing body contours.
The desired bending knee joint position can be re-adjusted by forming the
aluminum splints on the middle part of the brace.
The freely positionable side parts enable adaptation to various circumference
measurements. When set correctly, the side parts should overlap by approx.
2 cm (0.79 inches).
Lay the BORT Immobilization Splint around the leg from posterior so that the
kneecap (patella) is enclosed by the hollow.
Thread Velcro fasteners through plastic eyelets, guide them back and attach
them with Velcro under slight tension.
Attach the BORT Immobilization Splint so that, although the knee joint is
immobilized, no congestions are caused in the calf and foot area.
Removal
To remove the product, loosen the belt straps and take the brace off the leg.
Material composition
Polyamide (PA), cotton (CO), PUR foam (PUR)
The sewn in textile label provides the precise material composition.
Cleaning information
Delicate wash 30 °C Do not bleach (only wash with color or mild
detergents) Do not dry in a tumble dryer Do not iron
Do not clean chemically
Do not use fabric conditioner. Close the Velcro fastener in order to avoid
damaging other items of clothing and remove the aluminum splints. Stretch
back into shape and dry in the fresh air.
Medical device | Single patient – multiple use
